特点：
DSGK20系列制袋缝纫机是一款高速缝封缝纫机。该机主要部件采用20cr材料加工而成，加上合理的设计结构，使机器的整体质量得以提高。由于该机采用全封闭、全自动供油系统，使机器运行时的噪音平稳度都达到理想的状态。经久耐用，对维修保养带来很大方便。
Characteristics：

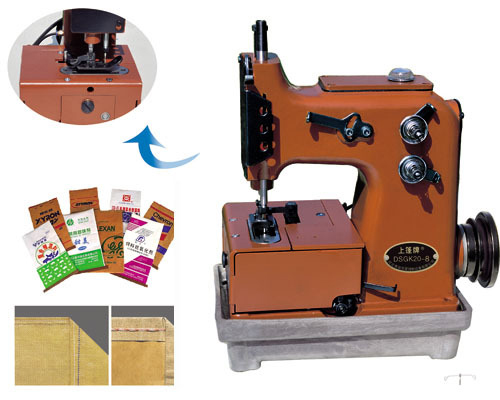

DSGK20 series sack-making sewing machine is a kind of high speed seaming sewing machine.Main parts of the machine are made of 20cr material through precision processing.This machine has reasonable design structure,which improve the overall quality.It adopts fully-enclosed and fulli-automatic oil-supply system,which could make the noise smoothness at ideal situation when the machine runs.It is durable and is convent for maintenancs.
使用范围：
该产品是双线链式线迹制袋缝纫机，专供粮食、饲料、化工、制糖、水泥、建筑安全网、蔬菜包装袋、港口、码头等企业的包装物制袋缝纫之用，配装在自动制袋机上使用效果更好。
Application：
The double-thread chain stitch bag making aewing machine is only for sewing container bag of enterprises of grain,feed, chemical,sugar manufacturing,cement,construction safety netting,vegetable container bag and port and dock. It will have better use result if it is assembled on automatic bag making sewing machine
主要技术参数Main Parameters:
缝纫速度 The maximum sewing speed |
2200/min |
缝纫厚度 The maximum sewing thickness |
8mm |
缝纫线迹型式 Sewing stitch pattern |
双线链式、单线链式 Double-thead stitch,single-thread chain stitch |
针距调节范围 Adjustable length of stitch length |
8-15mm |
针杆型号 Model of needle |
27×200-300 |
外形尺寸 Overall dimensions |
400×300×464 |
压脚提升高度 Lifting height of presser foot |
10mm |
电机功率 Power of motor |
370W |
机头净重 Net weight of head |
25kg |
业务垂询：13785792663
