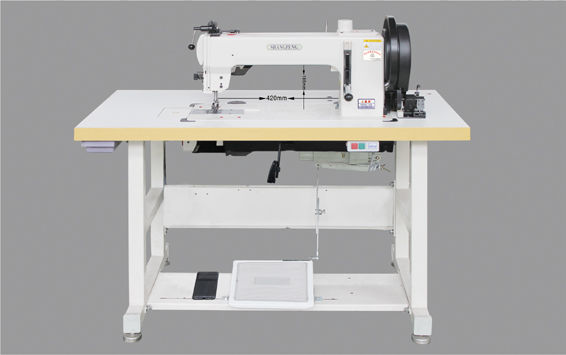

特厚料缝纫机 > GA204-420 综合送料厚料缝纫机



特点:强力合高效的三同步送料系统,保证了稳定的针距合顺畅的物料传送;高的交替压脚行程,稳固的爬坡能力和高功能的机针插入力度在缝纫过硬或较厚的交叉点时绝无问题;良缝纫动能确保了线迹的结实合美观。
Characteristics:High top feed stroke,excellent climbing properties and high needle pene-tration power guarantee the unproblematic sewing over cross seams or thick spots in theworkpiece.Optimized sewing kinematics for tight and excellent stitch formation.Pow.erfuland effective altermating feeding syetem for constant stitch lengths and trouble-free material feed.
用途:重型平板摆梭缝纫机主要用于处理一些使用特殊缝线合面料,如皮件,压明线,特殊纺织品的制造及装潢业等应用领域。
Uses:The GA204 class sewing machine with large barrel shuttle has been specially designed for processing the extreme thread and material thicknesses of heavyweight materials.Seams of leather goods,the manufactring of technical textiles and special sewing tasks when processingleather products and uplolstery,are among the extensive range of applications of 204.

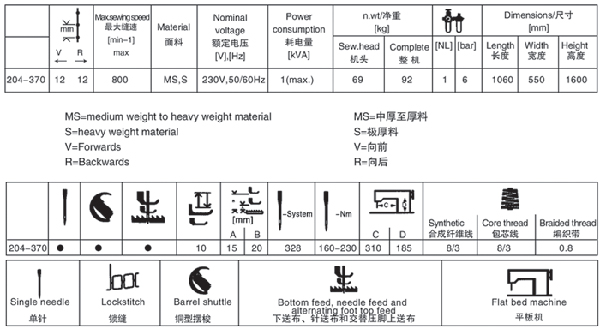

主要技术参数Main Parameters:
