性能优点:

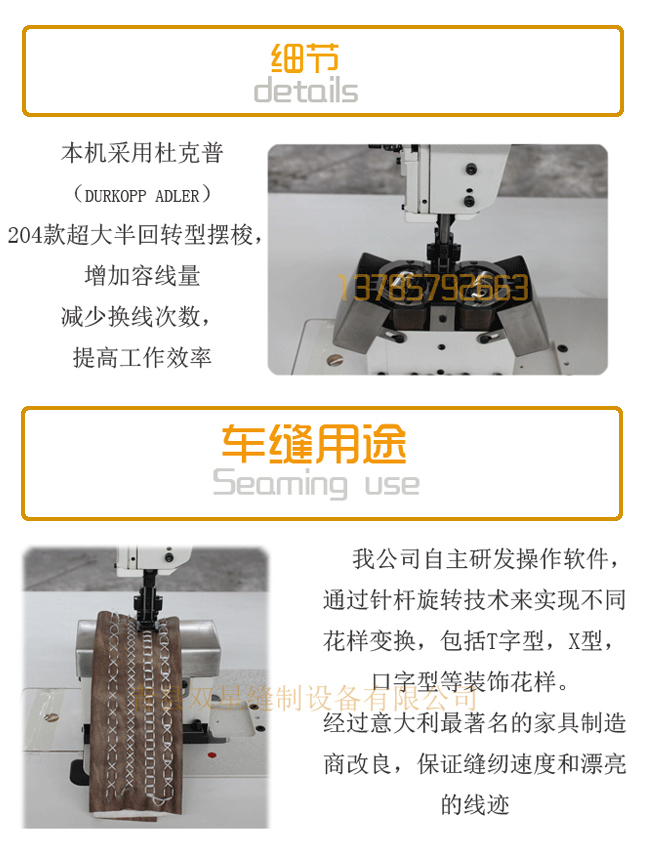

本机是双星粗线装饰缝中的新设备,此压线机采用综合送料方式,送料方式强劲稳定,采用双星公司自主研发操作软件,通过针杆旋转技术来实现不同花样变换,包括T字型,X型,口字型等装饰花样,本机经过意大利有名的家具制造商改良,在对沙发和汽车座套的转角进行压明线作业事也能保证缝纫速度和漂亮的线迹。本机采用杜克普204款超大半回款摆梭,增加容线量,减少换线次数,体高工作效率,能使用极粗线,是沙发和汽车座套生产厂家不可缺少的花样装饰缝纫设备。
Advantages:
This machine is the newest equipment in the decoration line of double star coarse line.This line press adopts the comprehensive feeding mode,and the feeding force is strong and stable,The company developed the binary software,by rotating the needle bar technology to achieve different pattern transformation,including T type,can guarantee the sewing speed and beautiful stitches are X mouth shaped decorative pattern of this machine improved the most famous Italy furniture manufcturers in the coener of sofa and car seat cover for pressure line operation.This machine adopts DU kEpu(DURKOPP ADLER)204 large half back transfoemation shuttle,increase line capacity,reduce change times,improve work efficiency can use a very coarse line pattern decoration sewing equipment indispensable high-grade sofa an car manufacturers.
主要技术规格Main Parameters:
型号 Mode |
GA240-370-2A |
缝速 Max.Sewing speed |
300 r.p.m |
针杆行程 Needie bar stroke |
56mm |
压脚提升 Presser foot lift
|
气动22mm
Pneumatic22mm |
机针 Needle size |
DYx3 27# |
针间距 Needle gauge |
|
摆梭 Shuttle hook |
KSP-204N |
缝台高度 Height of sewing bed |
|
润滑方式 Lubrication mode |
手工润滑 Manual |
操作空间 Working place |
|
